Oct 11, 2023 - 1 min read

Seting up Oracle 11G Database in linux using Docker

Installing Docker

Make sure you have installed Docker in your Linux system. Run docker --version if output is similar to Docker version 24.0.5, build ced0996600, then docker is installed
else, you can follow Docker Installatiion Guide to install.

Downloading Installation Files

Download Oracle Database 11gR2 installation files from the official Oracle Site. Installation files are: linux.x64_11gR2_database_1of2.zip and linux.x64_11gR2_database_2of2.zip

Prepare Directory Structure

Create a directory db_files to organize the database installation binaries. You can structure the directory as below

mkdir ~/oracle/db_files -p
mv linux.x64_11gR2_database_1of2.zip ~/oracle/db_files
mv linux.x64_11gR2_database_2of2.zip ~/oracle/db_files
cd ~/oracle/db_files
unzip linux.x64_11gR2_database_1of2.zip
unzip linux.x64_11gR2_database_2of2.zip

Pull the Docker image and run the Docker Container

To pull the Docker image use below command

docker pull jaspeen/oracle-11g

To run the container use below command

docker run -p 1521:1521 -p 8080:8080 --name oracle-db \
      -e ORACLE_ALLOW_REMOTE=true \
      -e INSTALL_DB=true \
      -v /home/<your_username>/oracle/:/install \
      jaspeen/oracle-11g:latest

NOTE: put your username inside <your_username>

Wait for few minutes to install the database

Connecting to the Oracle Database

After container is up and running, you can connect to the Oracle Database using a tool like SQL*Plus or Oracle SQL Developer. Use the following details to connect:

Host: 127.0.0.1 ( if docker is running locally) or <IP Address of remote Linux machine>
Port: 1521
SID: oracl
Username: system
Password: oracle (default-password)

To connect to database using SQL*Plus use following command:

sqlplus system/oracle@//localhost:1521/orcl

Change the default Password

After connecting, use the follow SQL command to change the password for the SYSTEM user. You need to specify the new password in single or double quotes

ALTER USER SYSTEM IDENTIFIED BY "<new_password>";

For example:

ALTER USER SYSTEM IDENTIFIED BY "passw0rd";

Commit the change after running "ALTER USER" statement with the following SQL statement

COMMIT;
EXIT;

Connecting with new password using `sqlplus` CLI utility

Use the following command to connect to the Oracle Database using SQL*Plus

sqlplus <username>/<password>@//<hostname-or-IP>:1521/<service-name>

example:

sqlplus system/passw0rd@//locahost:1521/orcl

Connecting with SQL Developer (Oracle provided tool)

installing SQL Developer

Download SQL Developer sqldeveloper-*-no-jre.zip from SQL Developer Downloads

Unzip the archive and follow as below:

unzip sqldeveloper*.zip -d ~/oracle/sqldeveloper

Insert below configuration in ~/.local/share/applications/sqldeveloper.desktop

[Desktop Entry]
Name=SQL Developer
Exec=/home/<your_username>/Downloads/oracle/sqldeveloper/sqldeveloper.sh
Icon=/home/<your_username>/Downloads/oracle/sqldeveloper/icon.png
Terminal=false
Type=Application
Categories=Development;

NOTE: put your your username inside <your_username>

connecting

connect to the database with your own password

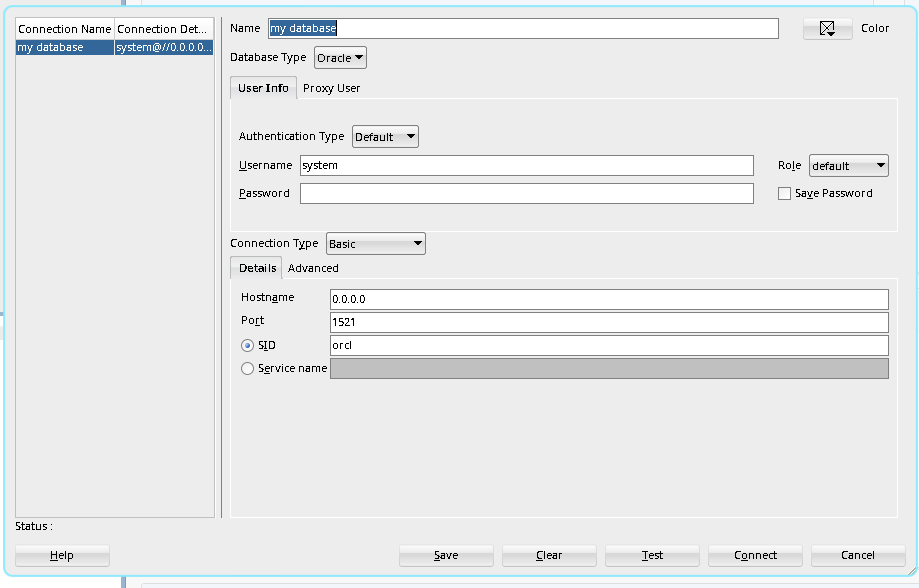

SQL Developer

Connecting with `DBeaver`

Install DBeaver using package manager of your Linux distro

Use below configuration as below with your own password

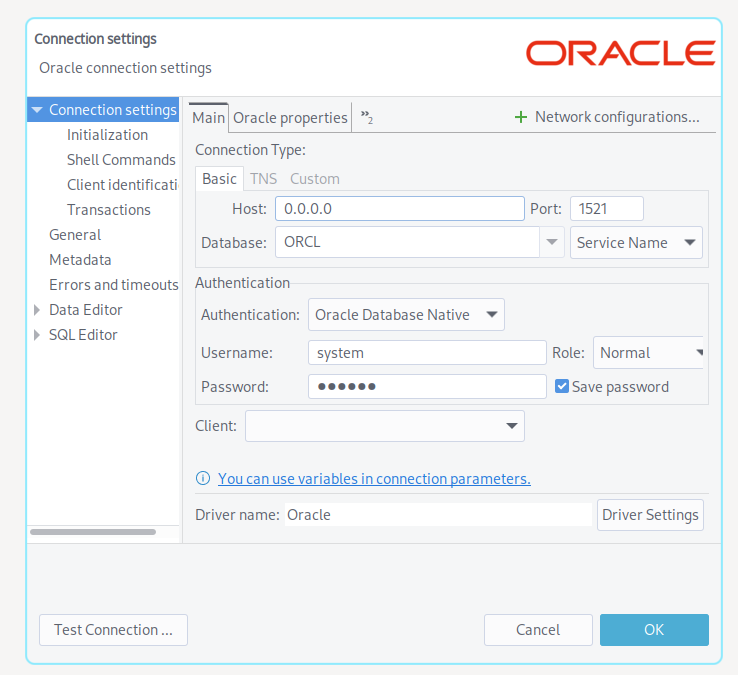

DBeaver
